Outcropping Mineralized Breccia and Porphyry Systems

Targets Description

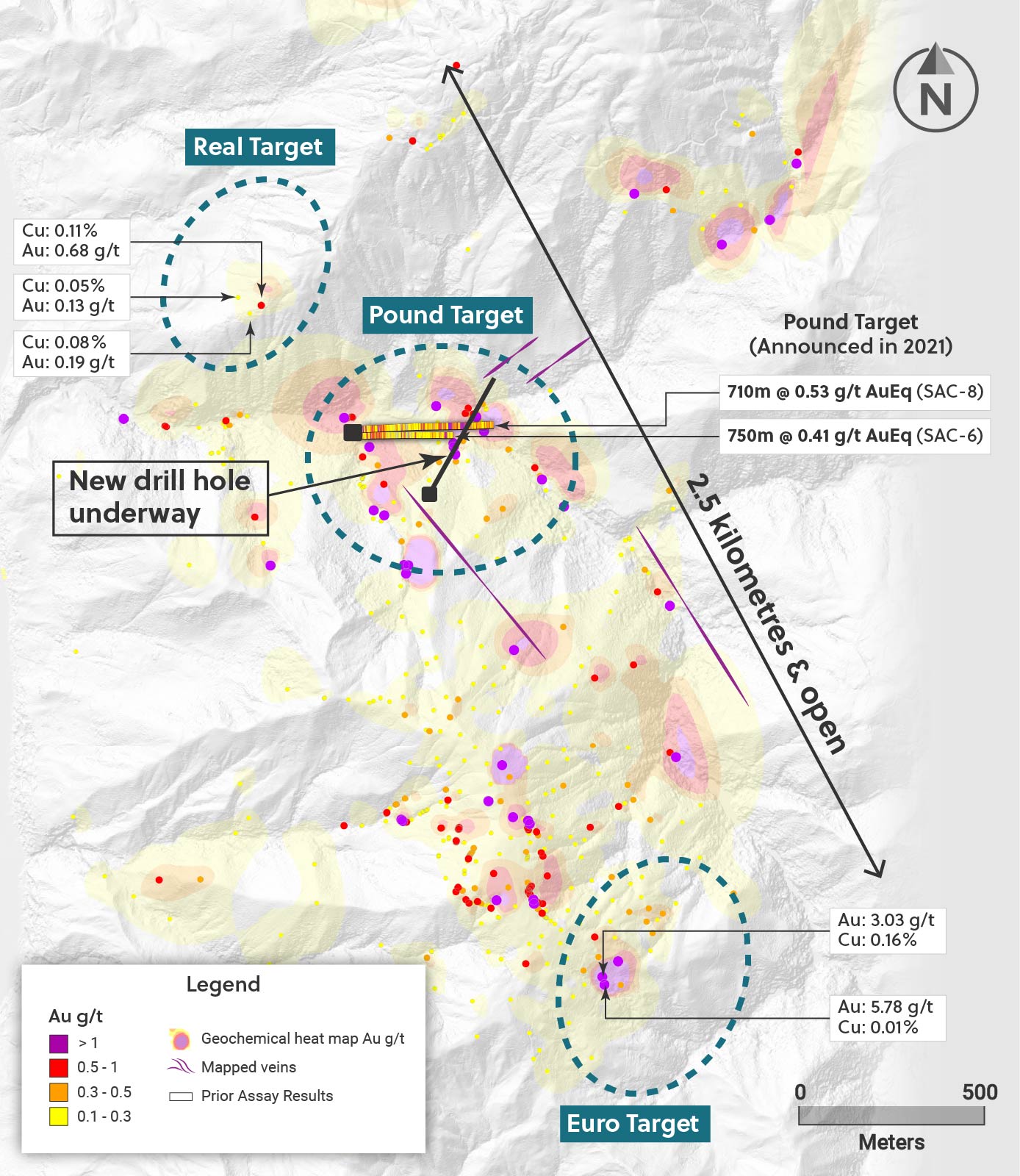

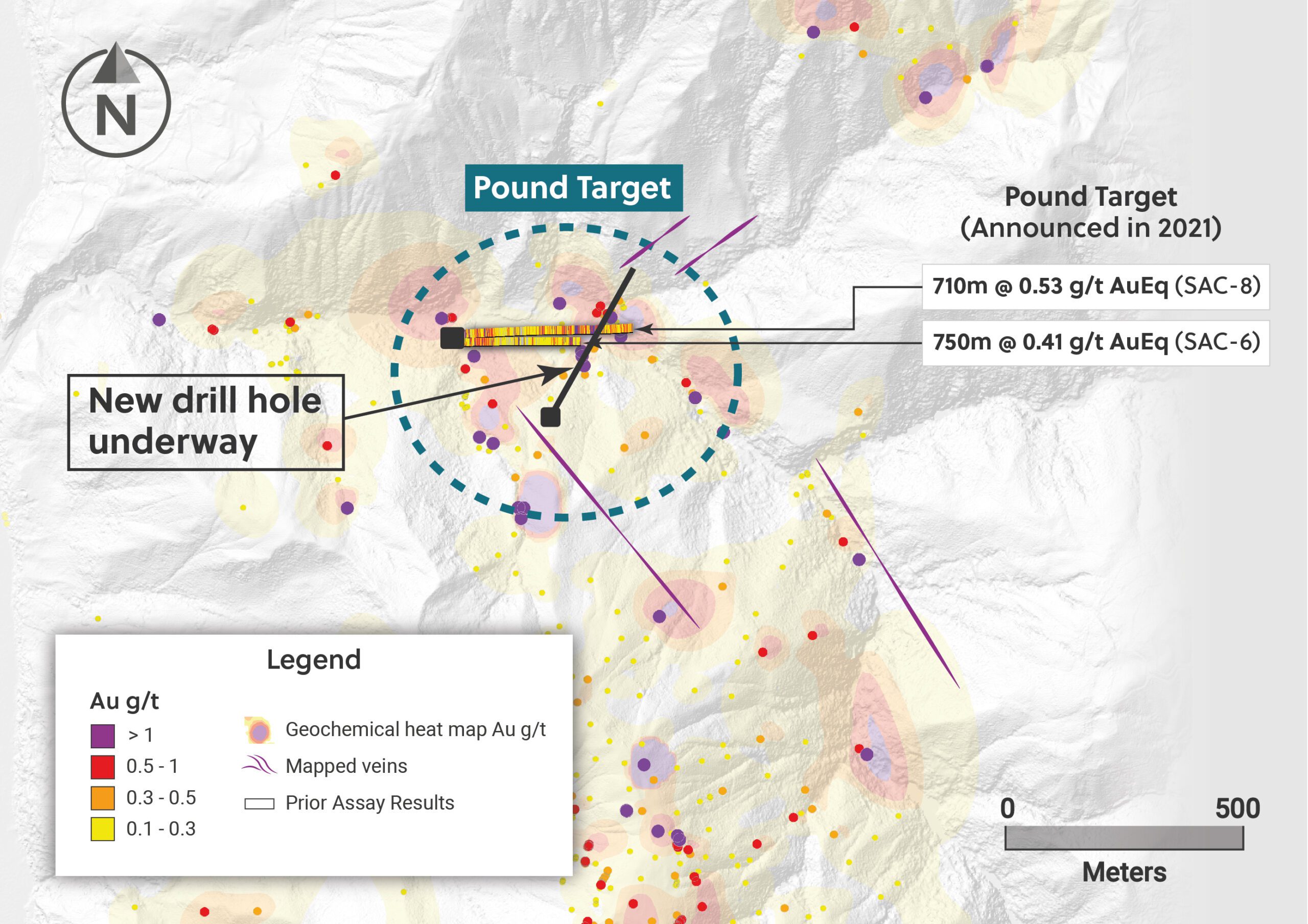

PLAN VIEW OF THE POUND TARGET

Pound

Phase 1 completed in 2021and initial discovery announced
Further surface work completed in 2022
Follow up drilling commenced in January 2025

The Pound target is a significant grassroots discovery announced in October 2021, is located in the northern portion of the project and is defined by multiple, outcropping, hydrothermal breccia bodies hosted within highly altered diorite and quartz diorite which pass into a mineralized porphyry vein system hosted within metagabbro country rock at depth. As with the Guayabales area, all porphyry systems are overprinted by late stage, polymetallic veins.

Historical drilling highlights include 710 metres at 0.53 g/t gold equivalent from surface including 133 metres at 0.92 g/t gold equivalent from 470 metre depth (SAC-8); and 750 metres at 0.41 g/t gold equivalent from surface including 187 metres at 0.59 g/t gold equivalent from 60 metre depth (SAC-6).

Recent mapping and sampling at Pound have encountered widespread and more extensive mineralization and has expanded the surface footprint of the highly altered system to 650 metres x 550 metres. Re-logging of historical diamond drilling has identified porphyry quartz veining hosting copper and gold at depth within the metagabbro country rock.

This zone of altered intrusive and breccia bodies trends NE-SW and has as strike length of 1.3 kilometres. The zone remains open in all directions.

Hole #
From (m)
To (m)
Intercept (m)
Au (g/t)
Ag (g/t)
Cu%
Mo %
AuEq (g/t)*
SAC-6
750.40
750.40
0.32
6
0.02
0.001
0.41
Incl.
59.80
246.55
186.75
0.50
9
0.59
and
680.85
750.40
69.55
0.41
2
0.12
0.009
0.65
SAC-8
710.05
710.05
0.40
6
0.04
0.001
0.53
Incl.
3.50
155.70
152.20
0.50
11
0.01
0.000
0.62
and
469.80
603.10
133.30
0.61
6
0.15
0.003
0.92

Coming soon

Coming soon

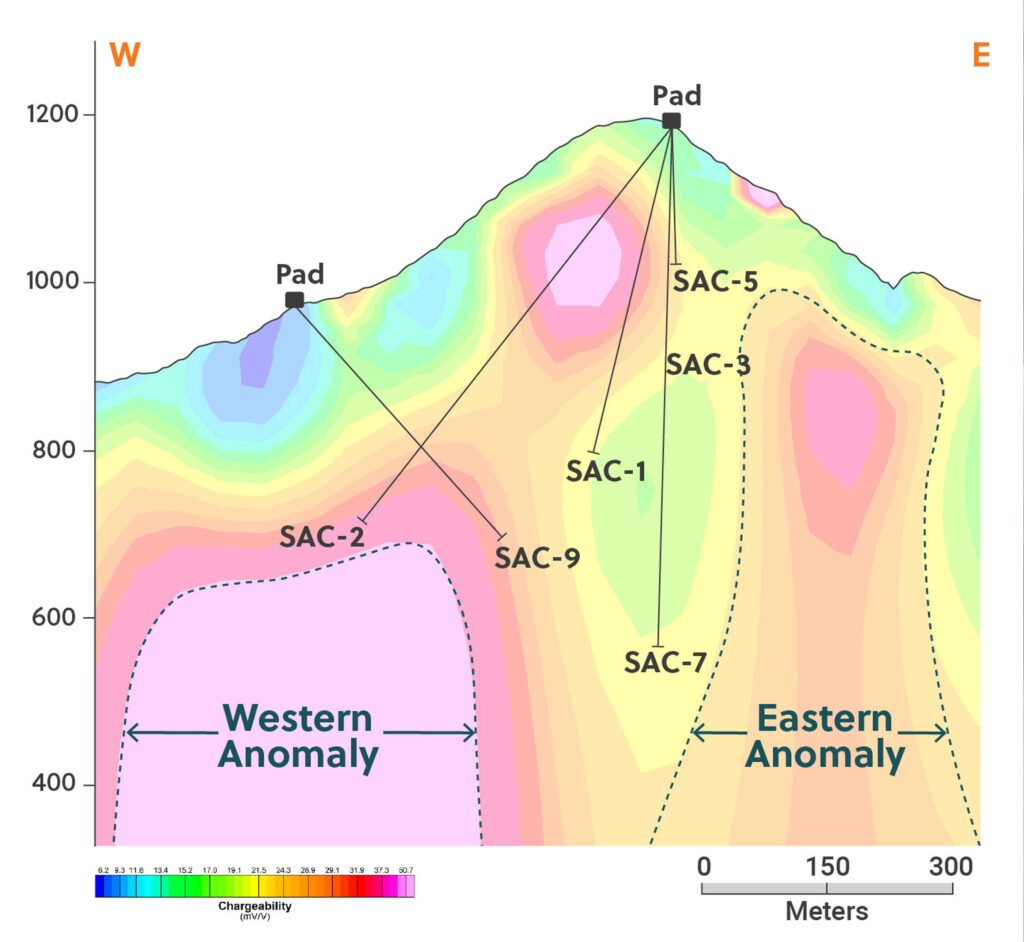

CHARGEABILITY SECTION OF
DOLLAR TARGET

Real

Reconnaissance Drilling Completed in 2021
Advanced surface work progressing

The Dollar target is located towards the southern end of the project consisting of surface level outcropping of quartz diorite porphyry host stockwork and sheeted quartz-magnetite vein systems associated with disseminated pyrite, and covers a 500 metre radius.

Scout drilling (6 holes) covered a portion of the target area.  Subsequent to drilling, ground geophysics was performed resulting in the identification of the eastern anomaly, where no exploration work has taken place. The Company is planning further exploration work at Dollar.

Hole #
From (m)
To (m)
Intercept (m)
Au (g/t)
Ag (g/t)
Cu%
Zn %
Mo %
AuEq (g/t)*
SAC-7
621.15
621.15
0.22
3
0.01
0.2
0.001
0.26
Incl.
547.40
621.15
73.75
0.49
6
0.05
0.2
0.001
0.62
*Please click here to view links to prior press releases for metrics used for equivalent calculations

Euro

Preliminary Exploration Underway
The COP target is located in the centre area of the project, some 800 metres south of Pound. COP is defined by highly anomalous molybdenum (8 ppm to 108 ppm) and gold (up to 2.74 g/t) in soils, in association with altered diorite porphyry and quartz veinlets, over an area covering 650 metres x 350 metres.
